Dyno Graphs & Drag
Racing Time Tickets
Most of these bikes are ridden on a regular
basis - back and forth to work, across town, and across the country. They
start with stock starters, run on pump gas,
and don't have (or need) compression
releases.
High performance doesn't
mean sacrificing reliability !
Check out the "Photos"
pages to see many of these bikes,
or click the
icon for a photo of a specific bike.
Many of these dyno runs are SAE
corrected, 4th gear roll-ons,
but some may use STD correction and/or 5th
or even 6th gear.
When comparing dyno runs,
gearing and correction factors are important to know.
Want to
know why?
Check
out the "Dyno Info" page for an
explanation and examples.
Click to jump down to:
Sportster / Evo / Twin Cam ('99-'06)
/ Twin Cam ('07-newer) / Time Tickets
|
Graphic proof that an exhaust system can make or break a performance package... |
|||
 |
 |
 |
 |
Click on a graph in the left column for a larger view.
| Sportster & Buell | ||||||||||
| Graph | Name/Yr/Model | Size | Pkg | Hp | Tq | Heads | Cams | Carb/EFI | Exhaust | Photo |
 |
Melissa '01 Sportster 883-1200 Conversion (before & after) |
74" | XL | 68.9 | 67.8 | 883-1200 Conversion by Hammer |
Stock 883 | Stock 40mm CV |
Cycle Shack Mufflers |
 |
 |
Al P. '01 Sportster 883-1200 Conversion |
74" | . | 65.4 | 76.1 | 883-1200 Conversion by Hammer |
Andrews N2 |
Stock 40mm CV |
Bassani Pro-Street |
 |
 |
Jennifer J. '08 Sportster XL 1200N |
74" | . | 79.1 | 80.1 | Stock | Stock | Stock | Thunderheader |
 |
 |
Lisa H. '95 Sportster 883-1200 Conversion (see time slip) |
74" | . | 79.5 | 80.3 | Lightning Stage 2 by Hammer |
SE Perf .536" |
Screamin Eagle 44mm CV |
Thunderheader |
 |
 |
John W. '01 Sportster 883-1200 Conversion |
74" | XL1 | 85.5 | 78.0 | Thunderstorm | SE Bolt-in .497" |
Stock 40mm CV |
? | . |
 |
Amy (2001) '95 Sportster 883-1200 Conversion |
74" | XL1 | 84.6 | 82.6 | Thunderstorm | SE Bolt-in .497" |
Screamin Eagle 44mm CV |
Thunderheader |
 |
 |
Amy
(2002) '95 Sportster 883-1200 Conversion (see time slip) |
74" | XL2 | 92.1 | 83.2 | Thunderstorm Stage 2 by Hammer |
SE Perf .536" |
Screamin Eagle 44mm CV |
Thunderheader |
 |
 |
Hammer (2001) '98 Buell S1 White Lightning (see time slip 1) |
74" | XL2 | 92.2 | 82.2 | Thunderstorm | SE Perf .536" |
Screamin Eagle 44mm CV |
Thunderheader by Hammer |
 |
 |
Matt & Lisa H. '97 Buell S1 Lightning (see time slip) |
74" | XL2 | 94.1 | 82.6 | Thunderstorm Stage 2 by Hammer |
SE Perf .536" |
Screamin Eagle 44mm CV |
Thunderheader by Hammer |
 |
 |
Hammer
(2002) '98 Buell S1 White Lightning (see time slip 2) |
74" | . | 107.4 | 80.6 | Thunderstorm Stage 2 by Hammer |
Red Shift 647 |
S&S Super G |
Buell Race Header |
 |
| Evolution Big Twin - 80" | ||||||||||
| Graph | Name/Yr/Model | Size | Pkg | Hp | Tq | Heads | Cams | Carb/EFI | Exhaust | Photo |
 |
John M. '88 FLSTC |
80" | EV1 | 72.0 | 81.6 | Stage 1 or Stage 2 "HammerHeads" |
EV 23 | Stock 40mm CV |
Cycle Shack or Vance & Hines Mufflers |
  |
|
Steve S. '98 FXDWG |
73.0 | 81.5 | ||||||||
|
Blue
D. '94 FLTC |
72.1 | 79.6 | ||||||||
 |
John Y. '98 FLHTCUI |
80" | EV1 | 74.6 | 84.6 | Stage 1 "HammerHeads" |
EV 23 | Modified Throttle Body |
Vance & Hines Mufflers |
 |
 |
Don V. '87 FXR |
80" | . | 79.9 | 85.2 | Screamin Eagle | EV 27 | Stock 40mm CV |
Cycle Shack | . |
| Reed S. '86. FLHS |
78.3 | 84.2 | Stage 1 "HammerHeads" |
|||||||
 |
Rebel '93 FLHS |
80" | . | 80.0 | 91.3 | Stage 2 "HammerHeads" |
EV 27 | Screamin Eagle 44mm CV |
Thunderheader |
 |
 |
Chris H. '98 FXDWG |
80" | EV2 | 80.9 | 84.9 | Stage 2 "HammerHeads" |
V-Thunder EVL 3030 |
Bored 40mm CV | White Bros "E" |
 |
| Lethon L. '91 FXDBS |
84.4 | 86.5 | SE CV 44mm |
Thunderheader |
 |
|||||
 |
Dave F. '95 FLHTCU |
80" | EV2 | 81.3 | 90.3 | Stage 2 "HammerHeads" |
V-Thunder EVL 3030 |
Stock 40mm CV |
Thunderheader | . |
 |
Cisco M. '96 FLHTCUI |
80" | . | 81.4 | 84.3 | Stage 2 "HammerHeads" |
SE-3 | Modified Throttle Body |
Vance & Hines Pro-Pipe |
. |
 |
Larry T. '98 FXDL |
80" | . | 81.6 | 88.4 | Stage 1 "HammerHeads" |
EV 51 | Stock 40mm CV |
Vance & Hines Long Shots |
 |
 |
Jim A. '98 FLHTC |
80" | . | 84.4 | 85.7 | Stage 2 "HammerHeads" |
SE 57 | Screamin Eagle 44mm CV |
Thunderheader |
 |
 |
Rich G. '98 FLSTF |
80" | EV3 | 91.7 | 90.1 | Stage 2 "HammerHeads" |
V-Thunder EVL 3060 |
Screamin Eagle 44mm CV |
Vance & Hines Pro-Pipe |
. |
 |

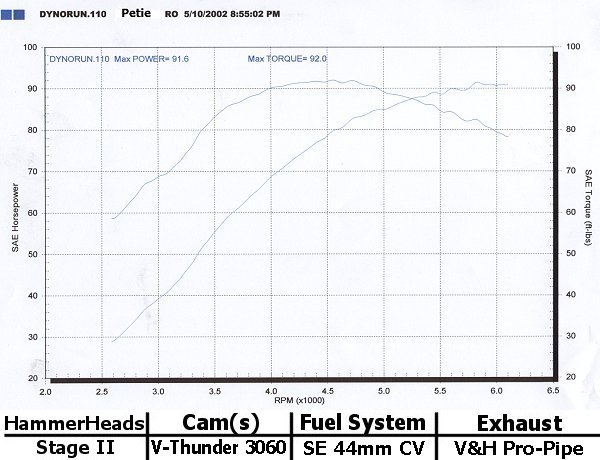

Petie '95 FLHTC |
80" | EV3 | 95.6 | 92.1 | Stage 2 "HammerHeads" |
V-Thunder EVL 3060 |
Screamin Eagle 44mm CV |
Thunderheader | . |
 |
Tom Mc. '95 FXDWG |
80" | EV3 | 95.9 | 86.6 | Stage 2 "HammerHeads" |
V-Thunder EVL 3060 |
Screamin Eagle 44mm CV |
Drag Pipes | . |
 |
Mad Dog '94 FLTCU |
80" | . | 93.5 | 83.8 | Stage 2 "HammerHeads" |
V-Thunder EVL 3070 |
Screamin Eagle 44mm CV |
Thunderheader |
 |
 |
Dan '93 FLSTF |
80" | . | 93.7 | 87.7 | Stage 2 "HammerHeads" |
SE 60 | Mikuni HSR 45 |
Vance & Hines Pro-Pipe |
 |
 |
Tom M. '97 FXSTS |
80" | . | 97.8 | 86.1 | Stage 2 "HammerHeads" |
SE 60 | Screamin Eagle 51mm CV |
Vance & Hines Pro-Pipe |
 |
| Evolution Big Twin - 89" & Larger | ||||||||||
| Graph | Name/Yr/Model | Size | Pkg | Hp | Tq | Heads | Cams | Carb/EFI | Exhaust | Photo |
 |
Fred C. '92 FLSTC |
89" | EV4 | 84.7 | 95.8 | Stage 2 "HammerHeads" |
EV 27 | SE CV 44mm |
Thunderheader |
 |
| Junior FLHT |
91.8 | 92.9 | S&S 600 | . | ||||||
|
MadDog '94 FLTCU |
97.6 | 90.9 | EVL 3070 |
|
||||||
 |
Slick '92 FLHTC |
89" | EV4 | 91.9 | 100.7 | Stage 2 "HammerHeads" |
EVL 5015 | 40mm CV bored | Thunderheader |
 |
| Carl B. '91 FLHTCU |
98.7 | 96.8 | EV 59 | HSR 42 | Pro-Pipe |
 |
||||
 |
Dave H. '92 FLHS |
89" | EV4 | 95.1 | 92.7 | Stage 2 "HammerHeads" |
EVL 3040 | SE CV 44mm |
V&H Pro-Pipe |
 |

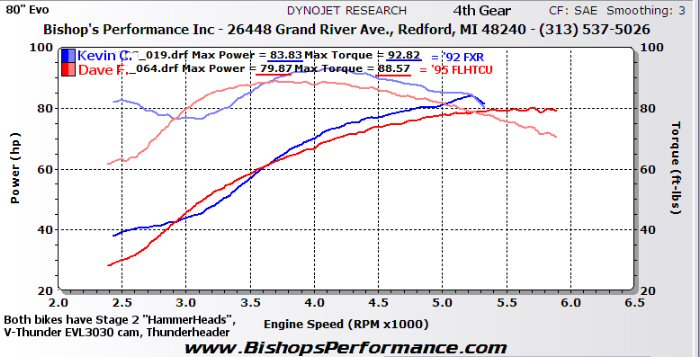

| Kevin C. '92 FXR |
85.3 | 94.4 | EVL 3030 | S&S E | V&H Big Shots |
 |
||||
 |
Dan '93 FLSTF |
89" | EV4 | 101.6 | 96.3 | Stage 2 "HammerHeads" |
SE 60 | SE CV 51mm |
Vance & Hines Pro-Pipe |
|
 |
Marty M. '00 Liberty |
96" | . | 96.9 | 97.0 | Stage 2 "HammerHeads" |
S&S 561 | SE CV 44mm |
Cycle Shack "M" |
 |
| Paul M. Ultra "Custom" |
94.4 | 98.0 | S&S ported by Hammer |
S&S G | V&H Pro-Pipe |
 |
||||
 |
HardRider Custom Softail S&S Engine |
96" | . | 108.7 | 104.6 | S&S ported by Hammer |
EVL 3060 | S&S G | Thunderheader |
 |
 |
Mark '00 Liberty S&S Engine w/Dual Carbs |
96" | . | 111.6 | 103.5 | Quantum 4-valve ported by Hammer |
EVL 3040 | Dual Stock 40mm CV |
BUB 2:1 |
 |
 |

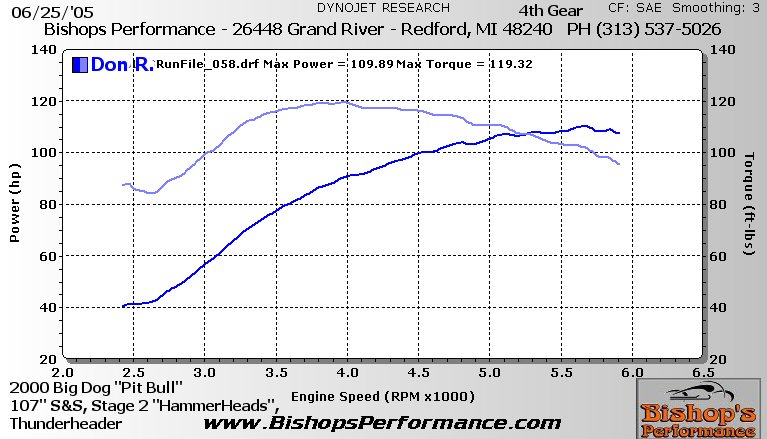

Don R. '00 Pit Bull (time slip ) |
107" | . | 111.6 | 121.1 | S&S ported by Hammer |
Red Shift 656 | Bored S&S G |
Thunderheader |
 |
| Guy W. '00 Pit Bull |
92.1 | 105.9 | Stock S&S | S&S | Stock S&S G |
? | . | |||
 |
Doug C. '98 FLHR |
113" | . | 117.8 |
123.1 |
Ultima, S&S | various | S&S | various |
 |
| Lobo L. '95 FXSTC |
114.0 | 117.7 |
 |
|||||||
| Kevin S. '98 FLSTS (time slip) |
117.0 | 115.8 |
 |
|||||||
| Bill H. Custom |
88.4 | 108.8 |
 |
|||||||
 |
Blue D. '94 FLTC |
113" | . | 119.2 | 120.2 | Ultima, ported by Hammer |
Ultima 625 | 45mm Mikuni |
Supertrapp 2:1 |
|
 |
Kevin S. '98 FLSTS (time slip) |
113" | . | 122.6 | 121.3 | Ultima, ported by Hammer |
Red Shift 647 | Bored S&S G |
V&H Pro-Pipe |
 |
 |
Chris C. Bourget Python Supercharged S&S Engine |
113" | . | 145.3 | 134.6 | S&S | S&S | S&S G with a Magna- charger |
Drag Pipes |
 |
| Twin Cam ('99-'06) - 95" | ||||||||||
| Graph | Name/Yr/Model | Size | Pkg | Hp | Tq | Heads | Cams | Carb/EFI | Exhaust | Photo |
 |
Mark G. '01 FLHRI |
95" | . | 77.8 | 90.0 | Stock HD | Stock HD | Modified Throttle Body |
Stock, Drilled |
. |
 |
Ken R. '02 FLHTCUI |
95" | TC1 | 77 | 106 | Stage 1 "HammerHeads" |
21N | Stock HD | True Duals w/SE Mufflers |
 |
 |
Dennis F., 01 FLSTC |
95" | TC1 | 83.9 | 98.2 | Stage 1 "HammerHeads" |
21N | Stock CV | Pro-Pipe |
 |
| Gary J., '01 FLHTCI |
84.0 | 95.2 | TW21G | Mod T.Body | Cycle Shack |
 |
||||
| Leo J., '05 FLHRCI |
86.5 | 98.5 | TW21G | Mod T.Body | Thunderheader |
 |
||||
 |

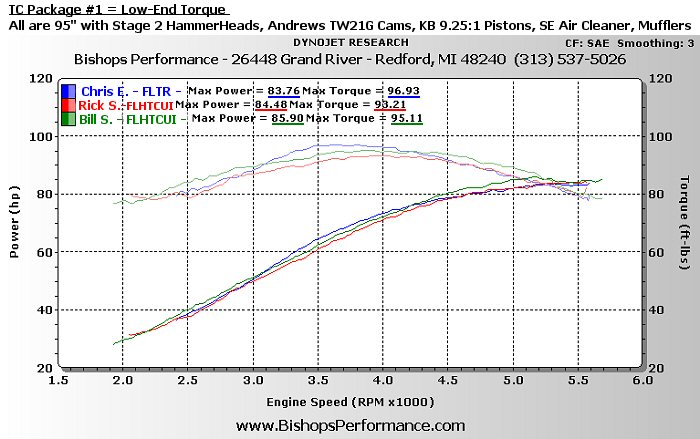

Chris E., '01 FLTR |
95" | TC1 | 85.9 | 98.8 | Stage 2 "HammerHeads" |
TW21G | Stock HD | Rinehart Duals |
 |
| Rick S., '02 FLHTCUI |
85.1 | 95.4 | SE Mufflers |
 |
||||||
| Bill S., '02 FLHTCUI |
87.5 | 97.1 | V&H Mufflers |
 |
||||||
 |
Jon '05 FLHTCI |
95" | TC1 | 84.6 | 101.2 | Stage 1 "HammerHeads" |
21N | Stock HD | SE Mufflers |
 |
 |
Chuck '00 FLTRI |
95" | TC1 | 81.5 | 96.1 | Stage 2 "HammerHeads" |
TW21G | Modified Throttle Body |
Kerker Mufflers |
. |
 |
Gypsy S. '99 FLTR |
95" | . | 82.7 | 97.6 | Stock | SE 203 | SE CV 44mm |
Thunderheader Mufflers |
 |
| 90.0 | 101.5 | Stage 2 "HammerHeads" |
||||||||
 |
Nitro L., '00 FLHT |
95" | . | 89.2 | 96.1 | SE ported by Hammer |
TW37G | SE CV 44mm |
Vance & Hines Pro-Pipe |
. |
| John O., '03 FXDWG |
85.4 | 96.6 | Stage 2 "HammerHeads" |
Stock 40mm CV |
 |
|||||
 |
Dave R. '01 FXDL |
95" | . | 90.0 | 101.5 | Stage 2 "HammerHeads" |
TW37G | Stock 40mm CV |
SE Mufflers |
 |
 |
Mike H., '02 FLHPI |
95" | TC2 | 82.7 | 93.9 | Stage 1 "HammerHeads" |
26N | Stock HD | V&H Mufflers |
 |
| Steve M., '06 FLSTC |
87.4 | 95.5 | Stock HD | Cobra Longs |
 |
|||||
| Neil M., '05 FLHPI |
85.8 | 93.7 | Mod T.Body | V&H Mufflers |
 |
|||||
| Nick R., '06 FLHTCI |
89.1 | 95.8 | TW26G | Stock HD | V&H Mufflers |
 |
||||
| John W., '01 FLHPI |
84.9 | 95.6 | Mod T.Body | V&H Mufflers |
 |
|||||
 |
Mark H., '01 FLHRCI |
95" | TC2 | 85.5 | 96.7 | Stage 2 "HammerHeads" |
TW26G | Mod T.Body | Rinehart Duals |
 |
| Duane S., '04 FLHRCI |
83.9 | 96.3 | Stock HD | SE Mufflers |
 |
|||||
 |
Robert B., '03 FXDL |
95" | TC2 | 84.0 | 96.1 | Stage 2 "HammerHeads" |
TW26G | Stock 40mm CV, Bored |
SE Mufflers |
 |
| Howard G., '00 FXD |
85.2 | 98.6 | Pro-Pipe |
 |
||||||
 |
Joe B. '02 FLHTCUI |
95" | TC2 | 85 | 97 | Stage 2 "HammerHeads" |
TW26G | Stock HD | ? |
 |
 |
Mike G. '05 FLHRI |
95" | TC2 | 88.6 | 95.0 | Stage 2 "HammerHeads" |
TW26G | Stock HD | Vance & Hines Mufflers |
 |
| Jeff L. '03 FLHTCI |
86.5 | 97.9 | Mod T.Body |
 |
||||||

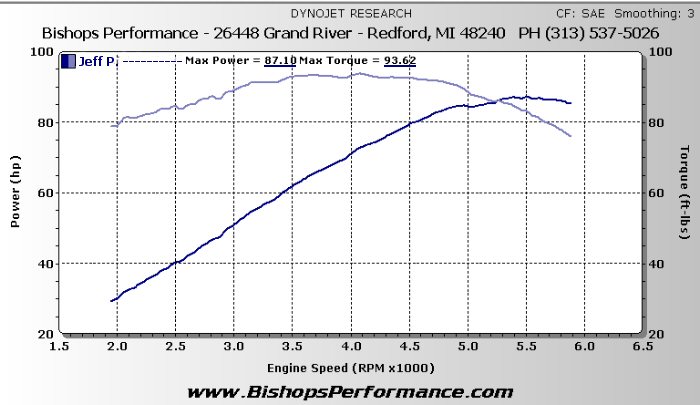

| Jeff P. '01 FLHTCUI |
88.7 | 95.8 | Stock HD |
 |
||||||
 |
Dick D. | 95" | TC2 | 88.3 | 98.7 | Stage 2 "HammerHeads" |
TW26G | ? | ? | . |
 |
Ace H. '02 FLSTC |
95" | TC2 | 88.7 | 102.1 | Stage 2 "HammerHeads" |
TW26G | Stock CV | V&H Big Guns |
 |
| Tony R. '02 FLHTCI |
89.7 | 100.3 | Mod T.Body | Thunderheader |
 |
|||||
 |
Matt H. (2002) '99 FLHR |
95" | TC2 | 94.1 | 106.2 | Stage 2 "HammerHeads" |
TW26G | SE CV 44mm |
Thunderheader |
 |
| ~ Back to Top ~ | ||||||||||
 |
Marty S. '04 FLSTCI |
95" | . | 88.3 | 97.5 | Stage 2 "HammerHeads" |
Woods TW6 |
Modified Throttle Body |
Cycle Shack Mufflers |
 |
 |
Ron F. '03 FLSTCI |
95" | . | 91.1 | 97.6 | Stage 1 "HammerHeads" |
HQ 34 | Stock T.Body | Vance & Hines Pro-Pipe |
 |
| 103" | 95.6 | 107.8 | Stage 2 "HammerHeads" |
Mod T.Body | ||||||
 |
Pat S. '01 FLHPI |
95" | . | 92.0 | 98.8 | Stage 2 "HammerHeads" |
S&S 510G |
Modified Throttle Body |
Vance & Hines Pro-Pipe |
 |
 |
Jim D. '00 FLHRCI |
95" | . | 101.4 | 109.3 | Stage 1 "HammerHeads" |
S&S 510G |
Modified Throttle Body |
Vance & Hines Pro-Pipe |
 |
 |
Scott S. '05 FLTRI |
95" | . | 93.4 | 103.9 | Stage 1 "HammerHeads" |
SE 204 | Stock HD | Bassani True Duals |
. |
 |
Dave M. '00 FLTR |
95" | . | 95.7 | 100.0 | Stage 1 "HammerHeads" |
SE 211 | Modified Throttle Body |
Vance & Hines Pro-Pipe |
 |
 |
Pete B., '01 FLHRI |
95" | . | 102.1 | 98.5 | Stage 2 "HammerHeads" |
TW44G | Mod T.Body | D&D FatCat |
 |
| Grant M., '01 FLHTCUI |
94.6 | 96.7 | Mod T.Body | D&D Boarzilla |
 |
|||||
| Spock J., '03 FLHRCI |
95.7 | 94.8 | Stock T.Body | V&H Mufflers |
 |
|||||
| Rob T., '00 FLHRI |
96.8 | 100.1 | Mod T.Body | V&H Mufflers |
 |
|||||
 |
Ron R. '04 FLHPI |
95" | TC3 | 91.6 | 95.4 | Stage 2 "HammerHeads" |
S&S 570G |
Modified Throttle Body |
SE Mufflers |
 |
| 95.3 | 99.3 | V&H Mufflers | ||||||||
 |
Mike H. '00 FXDX |
95" | TC3 | 93.1 | 102.4 | Stage 2 "HammerHeads" |
S&S 570G |
SE CV 44mm |
Screamin Eagle Mufflers |
 |
 |
Scott B. '99 FLHTCUI |
95" | TC3 | 94.2 | 103.2 | Stage 2 "HammerHeads" |
S&S 570G |
Modified Throttle Body |
White Bros "E" Mufflers |
. |
 |
Chris W. '00 FLHRCI |
95" | TC3 | 95.4 | 103.6 | Stage 2 "HammerHeads" |
S&S 570G |
Modified Throttle Body |
Thunderheader |
 |
 |
Twister '03 FLHTC |
95" | TC3 | 95.7 | 102.8 | Stage 2 "HammerHeads" |
S&S 570G |
Mikuni HSR 42 |
White Bros "E" 2:1 |
 |
 |
Dan J. '01 FLSTC |
95" | TC3 | 91.8 | 97.8 | Modified ? | S&S 570G |
SE CV 44mm |
White Bros "E" 2:1 |
 |
| 108.1 | 111.5 | Stage 2 "HammerHeads" |
||||||||
 |
Mike H., '00 FXDX |
95" | TC3 | 95.0 | 104.4 | Stage 2 "HammerHeads" |
S&S 570G |
SE CV 44mm |
SE Mufflers |
 |
| Tom L., '02 FLSTFI |
98.9 | 101.7 | Mod T.Body | Cycle Shack "M" |
 |
|||||
 |
Brian G., '04 FLSTF |
95" | TC3 | 99.1 | 101.8 | Stage 2 "HammerHeads" |
S&S 570G |
SE CV 44mm |
Python 2:1 |
 |
| Stewart R., '01 FXSTB |
94.2 | 102.4 | Stock CV | V&H Pro-Pipe |
 |
|||||
 |
Jim J., '05 FLHRSI |
95" | TC3 | 92.8 | 102.0 | Stage 2 "HammerHeads" |
S&S 570G |
Modified Throttle Body |
Thunderheader |
 |
| Paul O., '03 FLSTFI |
101.5 | 103.4 |
 |
|||||||
| Darren T., '04 FLHRCI |
97.7 | 100.3 |
 |
|||||||
| ~ Back to Top ~ | ||||||||||
 |
Charles C. '00 FXD |
95" | . | 97.3 | 101.0 | Stage 2 "HammerHeads" |
WT TC2G |
Stock 40mm CV |
D&D FatCat | . |
 |
Al D. '02 FLHTCUI |
95" | TC3 | 85.3 | 97.5 | Stage 2 "HammerHeads" |
TW55G | Modified Throttle Body |
Rinehart True Duals |
 |
| 92.1 | 98.1 | V&H Mufflers | ||||||||
 |
Ken B., '01 FLHTCUI | 95" | TC3 | 98.5 | 104.1 | Stage 2 "HammerHeads" |
TW55G | Mod T.Body | Bassani Mufflers |
 |
| Harold S., '01 FLSTF |
104.8 | 106.5 | SE CV 44mm |
V&H Pro-Pipe |
 |
|||||
 |
Kevin P. '03 FLSTFI |
95" | TC3 | 101.6 | 102.9 | Stage 2 "HammerHeads" |
TW55G | Stock Throttle Body |
V&H Big Shots |
 |
| 103" | . | 105.4 | 115.1 | Kuryakyn 57mm T.Body |
V&H Step Drags | |||||
 |
Matt S., '00 FLHTP |
95" | TC3 | 97.1 | 99.3 | SE ported by Hammer or Stage 2 "HammerHeads" |
TW55G | Modified | V&H Pro-Pipe or Thunderheader |
 |
| Bob D., '02 FLSTC |
100.1 | 100.9 |
 |
|||||||
| Romeo Y., '02 FLHTC |
99.0 | 103.1 |
 |
|||||||
 |
Dick M. '04 FXDWGI |
95" | TC3 | 103.0 | 105.6 | Screamin Eagle by Hammer |
TW55G | Modified Throttle Body |
Vance & Hines Big Shots |
 |
 |
Bill M. '02 FLSTFI |
95" | TC3 | 107.2 | 104.4 | Stage 2 "HammerHeads" |
TW55G | Modified Throttle Body |
D&D FatCat |
 |
 |
Gary H. '00 FLHTCUI |
95" | . | 102.3 | 108.5 | Stage 2 "HammerHeads" |
S&S 585G |
Modified Throttle Body |
Thunderheader |
 |
 |
Tony D. FXSTD |
95" | . | 103.6 | 106.5 | Stage 2 "HammerHeads" |
SE 211 | SE CV 44mm |
Vance & Hines Pro-Pipe |
 |
 |
Rick K. '01 FLHRI |
95" | . | 104.0 | 100.0 | Stage 2 "HammerHeads" |
WT TC4 |
Modified Throttle Body |
Thunderheader | . |
 |
Terry O. '05 FLHRCI |
95" | . | 101.2 | 99.2 | Zipper's | RS 577 | 50mm T.Body | Vance & Hines Pro-Pipe |
. |
| 103" | 113.1 | 112.9 | Zipper's by Hammer |
57mm T.Body | ||||||
| ~ Back to Top ~ | ||||||||||
 |
Steve M. '03 FLHRI |
95" | TC4 | 99.0 | 95.6 | Stage 2 "HammerHeads" |
TW60G | Stock T.Body | Vance & Hines Pro-Pipe |
 |
| 103" | TC6 | 115.8 | 111.1 | Stage 3 "HammerHeads" |
Mod T.Body | |||||
 |
Rob B., '00 FLSTF |
95" | TC4 | 103.0 | 100.8 | Stage 2 "HammerHeads" |
TW60 | SE CV 44mm |
V&H Pro-Pipe |
 |
| Al H., '02 FLHRSEI |
104.6 | 99.9 | Mod T.Body | Hooker Mufflers |
 |
|||||
| Lisa H., '01 FXDXT (see time slip) |
103.4 | 100.0 | SE CV 44mm |
V&H Pro-Pipe |
 |
|||||
| Chris O., '02 FXSTDI |
105.9 | 98.3 | Mod T.Body | Rinehart |
 |
|||||
 |
Greg B. '99 FXDX (see time slip) |
95" | TC4 | 103.3 | 101.0 | Stage 2 "HammerHeads" |
TW60 | SE CV 44mm |
Thunderheader |
 |
 |
Butch B. '00 FLHTCUI (see time slip) |
95" | TC4 | 105.3 | 100.8 | Stage 2 "HammerHeads" |
TW60G | Modified Throttle Body |
Vance & Hines Pro-Pipe |
 |
 |
Ken S. '01 FLSTFI |
95" | TC4 | 105.0 | 104.6 | Stage 2 "HammerHeads" |
TW60G | Modified Throttle Body |
Vance & Hines Straight Shots |
 |
 |
Dave F. (PA) '01 FLHRI |
95" | TC4 | 106.3 | 105.5 | Stage 2 "HammerHeads" |
TW60G | Modified Throttle Body |
Vance & Hines Mufflers |
 |
 |
Cisco M. '00 FLTR (see time slip) |
95" | TC4 | 106.4 | 108.1 | Stage 2 "HammerHeads" |
TW60G | SE CV 44mm |
Vance & Hines Pro-Pipe |
 |
 |
John O. '03 FXDWG |
95" | TC4 | 107.3 | 104.2 | Stage 2 "HammerHeads" |
TW60G | SE CV 44mm |
Vance & Hines Pro-Pipe |
|
 |
Billy D. '00 FLSTF |
95" | TC4 | 109.0 | 104.6 | Stage 2 "HammerHeads" |
TW60G | SE CV 44mm |
Thunderheader |
 |
 |
Preacher M. '99 FLHTPI |
95" | TC4 | 109.1 | 105.5 | Stage 2 "HammerHeads" |
TW60G | Modified Throttle Body |
Vance & Hines Pro-Pipe |
. |
 |
Dave H. '99 FLHTCUI |
95" | TC4 | 110.6 | 108.0 | Stage 2 "HammerHeads" |
TW60G | Modified Throttle Body |
Vance & Hines Pro-Pipe |
 |
 |
Dave N. '01 FXDXT |
95" | TC4 | 111.4 | 109.5 | Stage 2 "HammerHeads" |
TW60G | SE CV 44mm |
Vance & Hines Pro-Pipe |
 |
 |
Tim D. '00 FLHRI |
95" | TC4 | 112.0 | 105.3 | Screamin Eagle by Hammer |
TW60G | Modified Throttle Body |
? | . |
| ~ Back to Top ~ | ||||||||||
 |
Marty D. '05 FLHRI |
95" | . | 111.1 | 103.1 | SE HTCC by Hammer |
TW67G | Modified Throttle Body |
Vance & Hines Pro-Pipe |
 |
 |
Tattoo '01 FXDWG (see time slip) |
95" | . | 112.4 | 100.1 | Stage 2 "HammerHeads" |
Custom by Hammer |
SE CV 51 mm |
Thunderheader |
 |
 |
Bill D., SR. '02 FLRHSEI |
95" | TC5 | 113.0 | 106.4 | Stage 2 "HammerHeads" |
S&S 640G |
Modified Throttle Body |
Vance & Hines Pro-Pipe |
 |
 |
Mark M. '05 FXD |
95" | TC5 | 116.6 | 101.8 | Stage 3 "HammerHeads" |
S&S 640G |
SE CV 51 mm |
Thunderheader |
 |
 |
Matt H. (2005) '99 FLHR |
95" | TC5 | 117.9 | 104.2 | Stage 3 "HammerHeads" |
S&S 640G |
SE CV 51 mm |
Thunderheader |
|
 |
Keith P. '99 FLTRI |
95" | TC5 | 120.0 | 101.5 | Stage 3 "HammerHeads" |
S&S 640G |
HP Inc Throttle Body |
Thunderheader |
 |
| Twin Cam ('99-'06) - 103" & Larger | ||||||||||
| Graph | Name/Yr/Model | Size | Pkg | Hp | Tq | Heads | Cams | Carb/EFI | Exhaust | Photo |
 |
Bob L. '03 FLHRSEI |
103" | . | 100.6 | 105.1 | Stock SE 103 | SE 253 | Stock HD | Rinehart True Duals |
 |
| 108.8 | 114.6 | SE 103 by Hammer |
S&S 570G |
Modified Throttle Body |
||||||
 |
George W. '03 FLHRSEI |
103" | . | 102.3 | 109.0 | SE 103 by Hammer |
S&S 570G |
Modified Throttle Body |
Vance & Hines Mufflers |
 |
 |
Kevin P. '03 FLSTFI |
103" | . | 105.4 | 115.1 | Stage 2 "HammerHeads" |
TW55G | 57mm T.Body | Vance & Hines Step Drags |
|
 |
Frank S. '02 FLHTCUI |
103" | . | 106.2 | 112.3 | Stage 2 "HammerHeads" |
TW55N | Modified Throttle Body |
Supertrapp 2:1 |  |
 |
Frank D. '02 FLHTCUI |
103" | . | 119.9 | 114.0 | Screamin Eagle "HTCC CNC" by Hammer |
TW55N | 57mm T.Body | Supertrapp 2:1 |  |
 |
Chuck H. '06 FLSTSI |
103" | . | 106.9 | 108.1 | SE 103 by Hammer |
S&S 585G |
58mm Throttle Body |
Rush Mufflers |
 |
 |
Gary H. '00 FLHTCUI |
103" | . | 108.5 | 119.8 | SE 110 by Hammer |
S&S 585G |
Modified Throttle Body |
Thunderheader | |
 |
Terry O. '05 FLHRCI |
103" | . | 113.1 | 112.9 | Zipper's by Hammer |
RS 577G |
58mm Throttle Body |
Vance & Hines Pro-Pipe |
. |
 |
Stan H. '00 FLHT |
103" | TC6 | 113.6 | 113.4 | Screamin Eagle by Hammer |
TW60G | Screamin Eagle 44mm CV |
Vance & Hines Pro-Pipe |
 |
 |
Steve M. '03 FLHRI |
103" | TC6 | 115.8 | 111.1 | Stage 3 "HammerHeads" |
TW60G | Modified Throttle Body |
Vance & Hines Pro-Pipe |
|
 |
T-2-T '05 FLHRCI |
103" | TC6 | 116.4 | 114.1 | Screamin Eagle "103" by Hammer |
TW60G | Modified Throttle Body |
Thunderheader | . |
 |
Shaggy '99 FLHR |
106" | . | 121.2 | 122.0 | Stage 3 "HammerHeads" |
TW9BG | SE 51mm CV |
Thunderheader |
 |
 |
Stan H. '99 FLHT |
107" | . | 112.1 | 118.5 | Stage 3 "HammerHeads" |
TW60G | Mikuni HSR 45 |
Vance & Hines Pro-Pipe |
. |
 |
Don B. '04 FLHRI (time slip) |
113" | TC7 | 123.3 | 123.4 | SE 103" by Hammer |
TW60G | 57mm Throttle Body |
Thunderheader |  |
| Bob G. '06 FLHTCUSEI |
121.5 | 116.2 | 58mm Throttle Body |
Supertrapp 2:1 |  |
|||||
| Stan H. '00 FLHT (time slip) |
110.5 | 122.4 | SE CV 51mm |
V&H Pro-Pipe | |
|||||
 |
Keith P. '99 FLTRI |
113" | . | 113.4 | 124.4 | Stage 3 "HammerHeads" |
S&S 640G |
Modified Throttle Body |
Thunderheader |  |
 |
Butch B. '03 FLHRSEI |
113" | . | 127.1 | 120.1 | SE 103" by Hammer |
S&S 640G |
51mm Throttle Body |
D&D Boarzilla |
 |
 |
Dixon T. '00 FXDX |
116" | . | 113.9 | 127.1 | S&S by Hammer |
S&S 640G |
S&S Super G | Hooker 2:1 | . |
 |
Mark G. '03 FLHT |
117" | . | 128.4 | 137.4 | Screamin Eagle "HTCC CNC" by Hammer |
Custom by Woods .670" |
Mikuni HSR 48 |
D&D Boarzilla |
. |
 |
Walter C. '05 FLHRI |
107" | . | 108.1 | 108.1 | Zipper's by Hammer |
RedShift 657G | 54mm Throttle Body |
V&H Mufflers |  |
| 124" | 125.5 | 124.6 | S&S 640G | Thunderheader | ||||||
 |
Jim B. '99 FLHTCI |
125" | . | 110.3 | 138.0 | Stage 3 "HammerHeads" |
SE 257 | Modified Throttle Body |
Thunderheader |  |
 |
Pierre L. '00 FLSTC (time slip) |
125" | . | 129.0 | 141.2 | Stage 3 "HammerHeads" |
S&S 640G |
S&S Super G | Vance & Hines Pro-Pipe |
 |
| Twin Cam ('07-newer) - 103" & Larger | ||||||||||
| Graph | Name/Yr/Model | Size | Pkg | Hp | Tq | Heads | Cams | Carb/EFI | Exhaust | Photo |
 |
Tony M. '07 FLHP |
103" | . | 79.2 | 93.8 | Stock HD | Stock HD | Stock HD | V&H Mufflers |  |
 |
Jack M. '07 FLTR |
103" | . | 90.9 | 102.4 | Stage 2 "HammerHeads" |
37H | Stock HD | V&H Mufflers |  |
 |
Dagger L. '07 FLHX |
103" | . | 93.4 | 103.6 | Stage 2 "HammerHeads" |
32H | Stock HD | Thunderheader Mufflers |
 |
| 96.5 | 102.2 | D&D Fat Cat w/BB Baffle |
||||||||
 |
Jim C. '08 FLHTCU |
103" | . | 96.7 | 94.7 | Screamin' Eagle ACR |
SE 258 | Stock 50mm | D&D Fat Cat w/Quiet Baffle |
 |
| 110.8 | 106.2 | SE ACR by Hammer |
SE 58mm | |||||||
 |
Gilbert S. '07 FLSTC |
103" | . | 102.1 | 105.1 | Stage 2 "HammerHeads" |
S&S 570G |
SE 50mm Throttle Body |
Python 2:1 |  |
 |
Tony C. '08 FLHX |
103" | . | 111.5 | 109.6 | Stage 2 "HammerHeads" |
SE 251 | SE 58mm Throttle Body |
Supertrapp 2:1 |  |
 |
Mike C. '08 FXDSE |
110" | . | 92.7 | 106.4 | SE 110 | SE 255 | Stock HD | Rush Mufflers |  |
| 109.7 | 110.4 | SE 110 by Hammer |
32H | SE 50mm Throttle Body |
D&D FatCat w/BB Baffle |
|||||
 |
Mike M. '08 FLHTCUSE |
110" | . | 107.6 | 108.9 | SE 110 by Hammer |
60H | SE 58mm Throttle Body |
Rinehart True Duals |
 |
| 116.8 | 111.9 | Supertrapp 2:1 | ||||||||
| 123.3 | 119.2 | Thunderheader | ||||||||
 |
Art K. '08 FLTR |
131" | . | 138.9 | 144.8 | JIMS by Hammer |
SE 264 | Modified SE 58mm Throttle Body |
D&D Boarzilla w/Quiet Baffle |
 |
| Drag Racing Time Tickets | ||||
| Time Ticket | Who/What/When/Where | ET | MPH | Photo |
 |
Hammer - Drag Bike Ubly Dragway, 08/27/'06 |
9.74 | 134.4 |  |
 |
Toothpick - '98 Buell S1 Bradenton Motorsports Park, 11/29/'03 |
10.58 | 124.79 |  |
 |
Hammer - '98 Buell S1 (#2) Ubly Dragway, 08/24/'02 |
10.97 | 123.94 |  |
 |
Hammer - '98 Buell S1
(#1) Ubly Dragway, 04/30/'00 |
11.19 | 115.20 |  |
 |
Cisco - on Pierre's '00 FLSTC Norwalk Raceway Park Norwalk, OH 06/08/'02 |
11.66 | 113.29 |  |
 |
Matt/Lisa H. (Hammer as pilot) '97 Buell S1, extended swingarm Ubly Dragway, 08/28/'05 Watch the video |
11.72 | 115.05 |  |
 |
Kevin S. - '98 FLSTS = 113" Ubly Dragway, 07/27/'08 Watch the video / Wheelies video |
11.80 | 103.51 | |
 |
Amy - '95 Sportster Ubly Dragway, 08/27/'06 Watch the video |
11.88 | 111.97 |  |
 |
Greg B. - '99 FXDX Ubly Dragway, 4/30/'00 |
11.90 | 108.81 |  |
 |
Don S. - '95 Sportster US 41 Dragway, IN 09/07/'02 |
11.92 | 109.47 |  |
 |
Don R. - '00 Big Dog "Pit Bull" Ubly Dragway, 06/26/'05 Watch the video |
11.97 | 106.61 |  |
 |
Tattoo - '01 FXDWG Ubly Dragway, 09/16/'01 |
12.01 | 110.32 |  |
 |
Lisa H. - '01 FXDXT Ubly Dragway, 06/24/'07 Watch the video |
12.07 | 111.45 |  |
 |
Don B. - '03 FLHRI 113" Lapeer Dragway, 4/2/'06 Note: 1st time at the track and poor conditions Watch the video |
12.12 | 108.80 |  |
 |
Matt H. (Hammer as pilot) '97 Buell S1, stock swingarm Ubly Dragway, 06/26/'05 Watch the video |
12.23 | 114.22 |  |
 |
Stan H. (Hammer as pilot)
- '00 FLHT Ubly Dragway, 06/24/'07 Watch the video |
12.36 | 105.91 |  |
 |
Cisco - '00 FLTR Lapeer Dragway, 7/14/'02 |
12.42 | 109.36 | |
 |
Lisa H. - '95 Sportster Ubly Dragway, 08/28/'05 Watch a video |
12.66 | 108.96 | |
 |
Butch - '99 FLHTCUI Ubly Dragway, 10/21/'01 |
13.20 | 100.99 |  |
Racing Videos and
Pictures:
|
Ubly 08/'05 |
Lapeer 04/'06 |
Ubly 04/'06 |
AHDRA 06/'06 |
Ubly 08/'06 |
|
Ubly 06/'07 |
Ubly 08/'07 |
Racing 2008 |
AHDRA 06/'09 |
Racing 2009 |
Racing 2010 |
Home |
Heads |
Packages |
Dyno Info |
Dyno Graphs |
Services |
Parts |
Prices |
T-shirts |
Photos |
Drag Bike |
Videos
Testimonials |
Events |
Employment |
Store Info |
Email |
Site Map
